Waveshare ESP32-C6 1.54inch e-Paper AIoT Dev Board with Battery

Waveshare ESP32-C6 1.54inch e-Paper AIoT Dev Board with Battery

20,95 €

ESP32-C6 1.54inch e-Paper AIoT Development Board, 200 × 200 resolution, Supports Wi-Fi, BLE 5, and Online LLM Platforms

ESP32-C6 1.54inch
e-Paper AIoT Development Board

Supports AI speech interaction, temperature and humidity monitoring, and DIY creative function, etc.

ESP32-C6 1.54inch e-Paper AIoT Development Board, front view
ESP32-C6 1.54inch e-Paper AIoT Development Board, features

Version options

ESP32-C6-ePaper-1.54, with Lithium Batt

ESP32-C6-ePaper-1.54
comes with a 3.7V Lithium Batt
(can be installed inside the case)

ESP32-C6-ePaper-1.54-EN, without Lithium Batt

ESP32-C6-ePaper-1.54-EN
without Lithium Batt


Features

The ESP32-C6-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-C6 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.

  • Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
  • Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
  • Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
  • Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
  • Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
  • Onboard TF card slot for external storage of images or files
  • Onboard programmable PWR and BOOT side buttons for customized function development
  • Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion

Specifications

display panel e-paper display Display size 1.54inch
resolution 200 × 200 grey scale 2
Communication interface SPI full refresh time 2s
display color black, white partial refresh time 0.3s
Viewing Angle >170° Display Type Passively reflective

Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output

ESP32-C6 1.54inch e-Paper AIoT Development Board, onboard audio codec chip

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc

ESP32-C6 1.54inch e-Paper AIoT Development Board, explains the process of AI speech interaction

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

epaper-advantage

Application Scenarios

Suitable for Voice Interaction and e-Reader, etc

ESP32-C6 1.54inch e-Paper AIoT Development Board, Speech interaction

Voice Interaction

ESP32-C6 1.54inch e-Paper AIoT Development Board, Supports e-readers

E-Reader

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, and tutorials to help you easily get started

ESP32-C6-ePaper-1.54, Supports ESP-IDF ESP32-C6-ePaper-1.54, Supports Arduino

What's On Board

ESP32-C6 1.54inch e-Paper AIoT Development Board, detailed introduction
  1. ESP32-C6
    Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4 GHz Wi-Fi 6 and BLE 5
  2. TF card slot
    The TF card must be formatted to FAT32 before use
  3. 16MB NOR Flash
    for storing data
  4. Speaker amplifier chip
    professional audio power amplifier chip, delivering clear and rich audio output for a high-quality speaker experience
  5. ES8311 audio codec chip
    Supports audio input and output, low-power design, suitable for speech recognition and voice playback applications
  6. MX1.25 2PIN Lithium Batt header
    for connecting Lithium Batt
  7. MX1.25 2PIN speaker header
    audio output signal, for connecting external speaker
  8. Microphone
    for audio capture
  1. BOOT button
    Press it when powering on to enter download mode
  2. PWR button
    Enables power control via software configuration when using Lithium Batt for power supply
  3. SHTC3 temperature and humidity sensor
    provides ambient temperature and humidity measurement, enabling environmental monitoring function
  4. Type-C port
    ESP32-C6 USB port for programming and log printing
  5. TCA9554 (back side)
    supports 8-bit programmable GPIO expansion via I2C interface
  6. PCF85063 (back side)
    RTC chip with timekeeping function
  7. 2 × 6PIN 2.54mm pitch female pin header
    Peripheral expansion connector for connecting various modules and sensors

Outline Dimensions

ESP32-C6 1.54inch e-Paper AIoT Development Board, outline dimensions

Support Batch Customization

Supports Customization in bulk order for touch e-paper display and red / yellow / black / white four-color e-paper display, etc.

ESP32-C6 1.54inch e-Paper AIoT Development Board, Speech interaction

Touch e-paper display

ESP32-C6 1.54inch e-Paper AIoT Development Board, Supports e-readers

Four-color e-paper display

Resources & Services

Wiki: docs.waveshare.com/ESP32-C6-ePaper-1.54

1. General Shipping Information

  • We provide reliable shipping services with a tracking number for each order.
  • Shipping addresses must be entered in English and should not contain special symbols, so that the courier system can recognize your location correctly.
  • Please make sure your shipping address is accurate before placing your order. We ship strictly according to the address provided at checkout.
  • In-stock orders are usually dispatched within 1 business day after order confirmation.
  • Estimated delivery times refer to the period after dispatch and do not include order processing time, weekends, public holidays, customs inspection, or force majeure delays.
  • If you need to cancel or modify your order, please contact us before the order is marked as “Shipped”. Once shipped, the order cannot be canceled or changed.

🚀 Need Faster Shipping?

If you require expedited shipping, please contact our customer support team at info@upenelab.com for a customized quote based on your destination.

2. Shipping Rates & Options

Shipping rates are calculated based on order value, destination, and available shipping methods. The final available options will be displayed at checkout.

2.1 Germany Domestic Shipping

Shipping Method Order Value Cost Est. Delivery
Deutsche Post €0.00 - €50.00 €4.95 2-4 Business Days
Deutsche Post Over €50.00 Free 2-4 Business Days
DHL Paket
(Faster Delivery)
€0.00 - €50.00 €6.95 1-3 Business Days
DHL Paket
(Faster Delivery)
€50.00 - €100.00 €2.00 1-3 Business Days
DHL Paket
(Faster Delivery)
Over €100.00 Free 1-3 Business Days

2.2 Selected EU Countries / Regions

Available EU shipping destinations are shown at checkout based on your shipping address. For orders shipped to selected EU countries or regions outside Germany, we use FedEx Regional Economy.

Shipping Method Order Value Cost Est. Delivery
FedEx Regional Economy €0.00 - €100.00 €7.95 3-5 Business Days
FedEx Regional Economy Over €100.00 Free 3-5 Business Days

EU orders may be fulfilled from our Munich warehouse or, when applicable, from our Shenzhen warehouse depending on inventory availability. For EU member states, OpenELAB covers applicable import duties and taxes under DDP service where required.

2.3 United States

Region Shipping Method Order Value Cost Est. Delivery
Continental U.S.
(50 States)
USPS Ground Advantage €0.00 - €45.00 €4.95 3-7 Business Days
USPS Ground Advantage Over €45.00 Free 3-7 Business Days
USPS Priority Mail €0.00 - €45.00 €16.95 1-4 Business Days
USPS Priority Mail Over €45.00 €14.95 1-4 Business Days
Non-Continental U.S.
(AK, HI, PR, etc.)
USPS Ground Advantage €0.00 - €60.00 €6.95 5-9 Business Days
USPS Ground Advantage Over €60.00 Free 5-9 Business Days

Non-Continental U.S. regions include Alaska, American Samoa, Guam, Hawaii, the Marshall Islands, the Northern Mariana Islands, Palau, Puerto Rico, the U.S. Virgin Islands, and U.S. Armed Forces addresses.

2.4 International Destinations Outside the EU

For selected international destinations outside the EU, including Switzerland, the United Kingdom, and Norway, shipping rates are as follows:

Order Amount Shipping Cost
€0.00 - €300.00 €19.95
Over €300.00 Free

For non-EU destinations, import duties, taxes, and customs fees may be charged by the destination country and are the responsibility of the recipient.

3. Warehouses & Fulfillment

Our products may be stored in our Munich, Arlington, and Shenzhen warehouses. The actual shipping warehouse depends on product availability and destination.

3.1 Munich Warehouse

For products stored in our Munich warehouse, we use Deutsche Post or DHL Paket for domestic deliveries within Germany. For selected EU destinations outside Germany, we use FedEx Regional Economy.

3.2 Arlington Warehouse

For products stored in our Arlington warehouse, we use USPS or UPS for deliveries within the United States.

3.3 Shenzhen Warehouse

For pre-order items or products fulfilled directly from our Shenzhen warehouse, we arrange reliable international shipping based on destination and inventory status. For EU member states, OpenELAB covers applicable import duties and taxes under DDP service where required.

4. Inventory, Pre-orders & Split Shipments

  • Inventory Status: Please check the product page for real-time stock information. If an item is out of stock in our local warehouses, it may be marked as “Pre-order”.
  • Pre-order Fulfillment: Pre-order items may be shipped directly from Shenzhen or restocked to a local warehouse first before final delivery.
  • Split Shipments: If your order contains both in-stock and pre-order items, we may ship them separately. No additional shipping fee will be charged for split shipments caused by our fulfillment arrangement.

5. Customs, Taxes & Delivery Issues

5.1 Customs and Taxes

For EU Member States:
Whether shipped from Germany or China, OpenELAB covers applicable import duties and taxes under DDP service where required. Customers in EU member states should not be charged additional import duties or VAT upon delivery.

Important Notice for Non-EU Countries:
For destinations outside the European Union, such as Switzerland, Norway, and the United Kingdom, import duties, taxes, and customs fees may be charged by local authorities upon delivery. These fees are the responsibility of the recipient.

5.2 Damaged, Delayed, or Lost Parcels

Please inspect your parcel upon delivery where possible. If you notice visible damage, please report it to the courier and contact us as soon as possible. This does not affect your statutory consumer rights.

If your parcel is delayed, lost, returned to sender, or the tracking information has not updated for an unusual period of time, please contact us at info@upenelab.com. We will assist you in checking the shipment status with the courier.

5.3 Incorrect Address or Failed Delivery

If a parcel cannot be delivered due to an incorrect or incomplete address provided by the customer, refusal of delivery, or failure to collect the parcel, additional shipping or return costs may apply.

6. VAT

For orders within the EU, VAT is collected at checkout according to the applicable destination rules. No additional VAT should be collected upon delivery for EU member state orders covered under our DDP shipping arrangement.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
U
Uwe M.

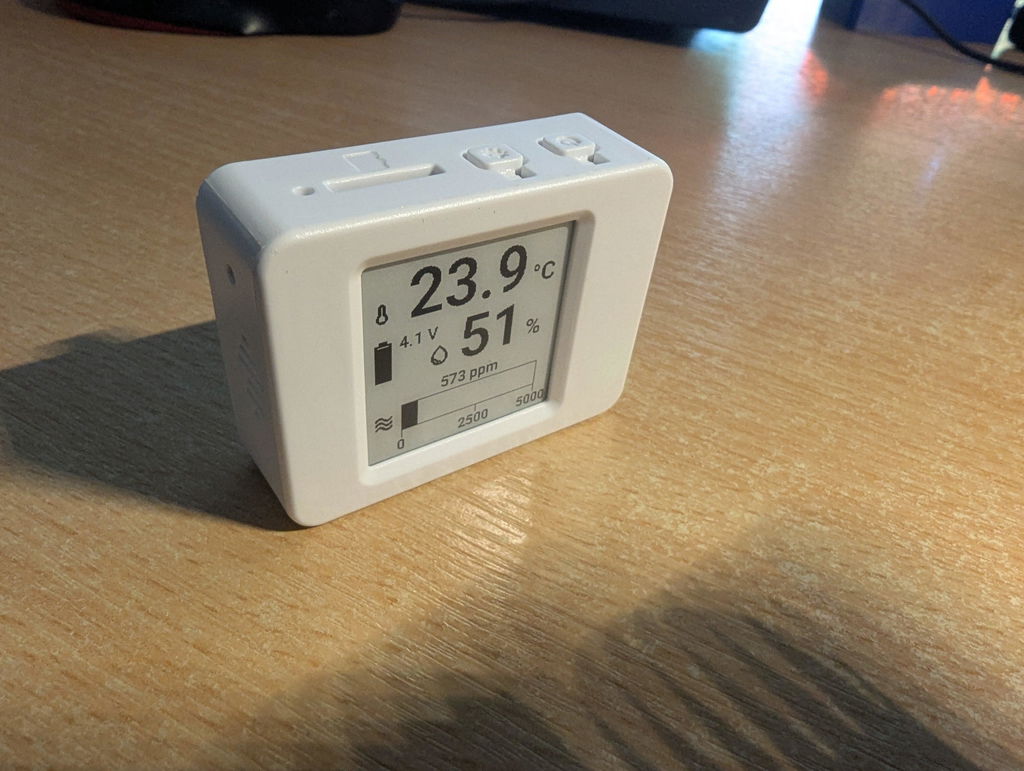

Sehr praktische kleine ESP32 Box
