Waveshare 1.54inch 200x200 SPI E-Paper Module
Waveshare 1.54inch 200x200 SPI E-Paper Module

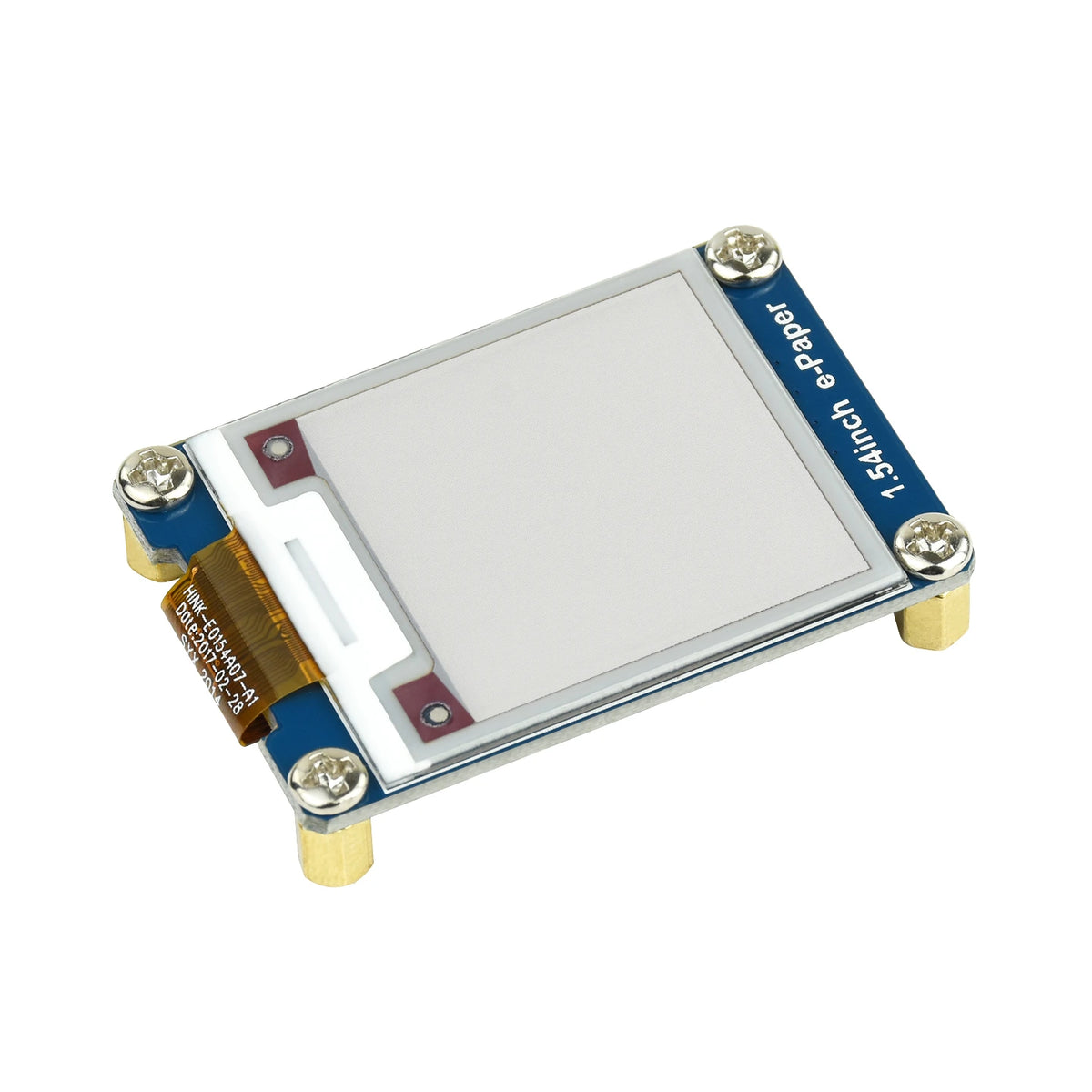

Waveshare 1.54inch e-Paper Module is a compact black-and-white E-Ink display module with 200 x 200 resolution, an embedded controller, and SPI communication. It is designed for low-power embedded display projects that need clear static information, wide viewing angle, and readable content without continuous display power.
The module supports 3.3V / 5V operation, 3-wire SPI, and 4-wire SPI. The official reference lists black and white display color, 0.3s partial refresh, 2s full refresh, 26.4mW typical refresh power, <0.017mW standby power, and a >170° viewing angle.
For related Waveshare E-Paper options, compare the Waveshare 1.54inch 3-Color E-Paper Module, Waveshare 1.54inch 4-Color E-Paper Module, and Waveshare 2.13inch E-Paper HAT+. For a larger monochrome option, see the Waveshare 4.2inch E-Paper Module.
Technical Specifications
| Brand | Waveshare |
|---|---|
| Store SKU | Waveshare-12955 |
| Official SKU Reference | 12955 |
| Part Number | 1.54inch e-Paper Module |
| Module Reference | HINK-E0154A05 / WFC0000CZ07 reference from official listing title |
| Display Type | Black-and-white E-Ink / E-Paper display module |
| Display Size | 1.54inch |
| Resolution | 200 x 200 pixels |
| Display Colors | Black and white |
| Grey Level | 2 |
| Controller | Embedded controller |
| Interface | 3-wire SPI or 4-wire SPI |
| Operating Voltage | 3.3V / 5V |
| Partial Refresh Time | 0.3s reference |
| Full Refresh Time | 2s reference |
| Refresh Power | 26.4mW typical reference |
| Standby Power | <0.017mW reference |
| Viewing Angle | >170° |
| Backlight | No backlight |
| Outline Dimension | 48 x 33mm reference |
| Compatible Controller Examples | Raspberry Pi, Arduino, Nucleo, and other SPI-capable controller boards |
| Display Retention | Keeps the last displayed content for a long time after power down |
Interface Notes & Hardware Guidance
- SPI setup: Select 3-wire SPI or 4-wire SPI according to the available host pins and the display driver configuration.
- Voltage check: Confirm whether the host board uses 3.3V or 5V logic before connecting power and signal lines.
- Refresh behavior: This black-and-white version supports partial refresh, making it more responsive than many multi-color E-Paper modules for small content updates.
- Power planning: The image remains visible without continuous display power, but the module needs stable power during each refresh cycle.
- Mechanical fit: Check the 48 x 33mm outline reference before placing the module into a compact enclosure or panel opening.
Packing List
| Item | Qty | Notes |
|---|---|---|
| Waveshare 1.54inch e-Paper Module | 1 | 200 x 200 black-and-white E-Paper display module |
| Integrated driver board | 1 | Embedded controller board on the display module |
| Product packaging | 1 | Packaging may vary by shipment batch |
| Documentation reference | 1 | Use official digital resources for wiring, refresh behavior, and demo guidance |
FAQ
What colors can this E-Paper module display?
It displays black and white on a 1.54inch E-Paper panel.
What resolution does the module provide?
The display resolution is 200 x 200 pixels.
Which interface does it use?
It communicates through SPI and supports 3-wire SPI or 4-wire SPI setups.
Does it support partial refresh?
Yes. The official reference lists a 0.3s partial refresh time and a 2s full refresh time.
Does it need power to keep the image visible?
No continuous display power is needed to keep the last image visible, but stable power is required when refreshing content.
