Seeed Studio SenseCAP Solar Node P1-Pro for MeshCore
Need a larger quantity?
Need bulk pricing?
Get a formal quotation with lead time and volume pricing.
For universities, companies, distributors, and project orders.
Seeed Studio SenseCAP Solar Node P1-Pro for MeshCore

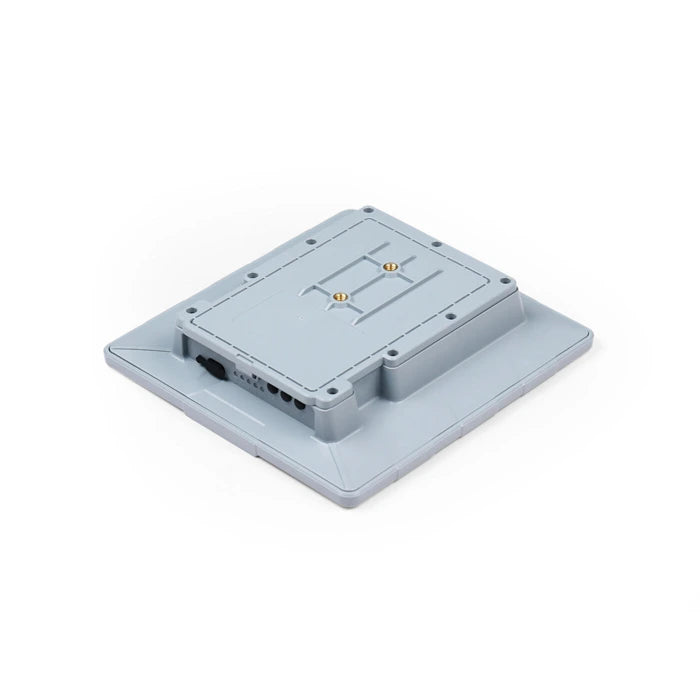

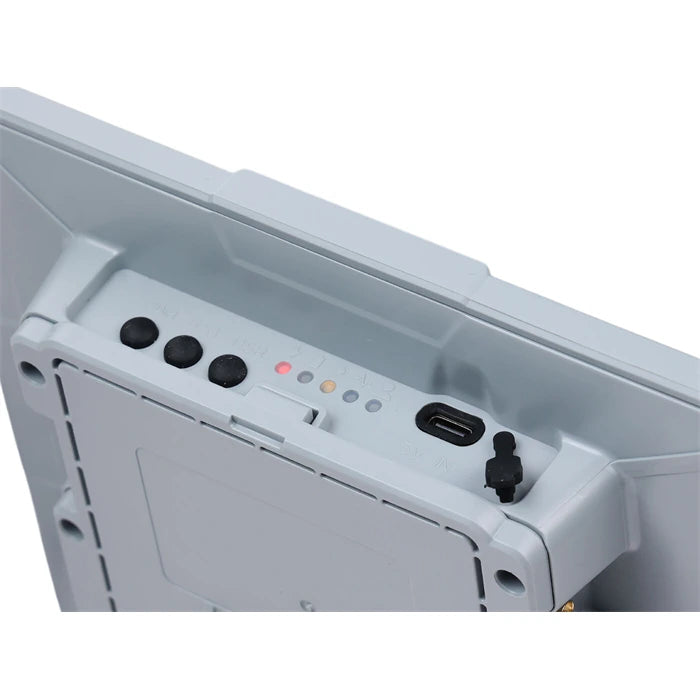

Seeed Studio SenseCAP Solar Node P1-Pro for MeshCore is a solar-powered outdoor MeshCore repeater node built for fixed, low-maintenance, off-grid deployments. It integrates the XIAO nRF52840 Plus main controller, the Wio-SX1262 LoRa module, and the XIAO L76K GPS module to deliver long-range communication, precise positioning, and low-power outdoor operation in a fully enclosed solar-powered form factor. This product is best used for MeshCore backbone expansion, outdoor repeaters, rooftop relay deployment, farm or campus coverage, and permanent low-maintenance mesh infrastructure.
This page is intentionally optimized for MeshCore. If you are more focused on Meshtastic, please choose the Meshtastic-compatible version of this product instead, because that variant is the better fit for Meshtastic-oriented deployment and setup.

Features
- Pre-flashed with MeshCore repeater firmware for fixed outdoor backbone deployment.
- Built with XIAO nRF52840 Plus for low-power wireless control.
- Uses Wio-SX1262 LoRa module for long-range sub-GHz communication.
- Includes XIAO L76K GPS module for location-aware outdoor installation and positioning.
- 5W solar panel for autonomous outdoor power harvesting.
- Supports 4 x 18650 batteries, 3350mAh each, for long-duration operation.
- Built for long-term outdoor deployment with weather-protected construction.
- Can serve as an outdoor repeater or fixed relay node to expand MeshCore coverage.
Specifications
| Main Controller | XIAO nRF52840 Plus, Nordic nRF52840, 64MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash |
| LoRa Module | Wio-SX1262, up to 22dBm at 862-930MHz |
| GPS Module | XIAO L76K, supports GPS, GLONASS, and Galileo |
| LoRa Antenna | 868-915MHz, 2dBi rod-shaped rubber antenna |
| Bluetooth | 5.0 |
| Solar Panel | 5W |

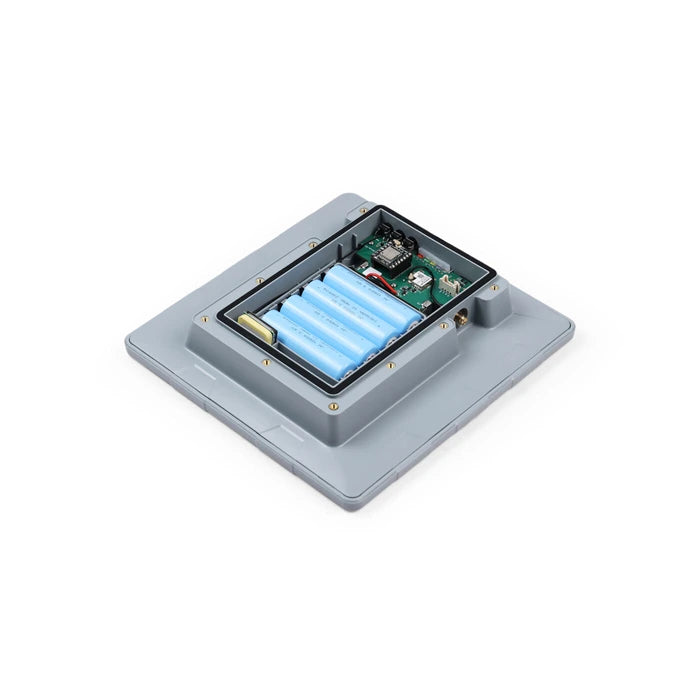

| Battery Support | 4 x 18650 batteries, 3350mAh each |
| Communication Distance | Up to 8-9km in open areas |
| USB-C Input | 5V 1A |
| Waterproof Rating | IPX5 |

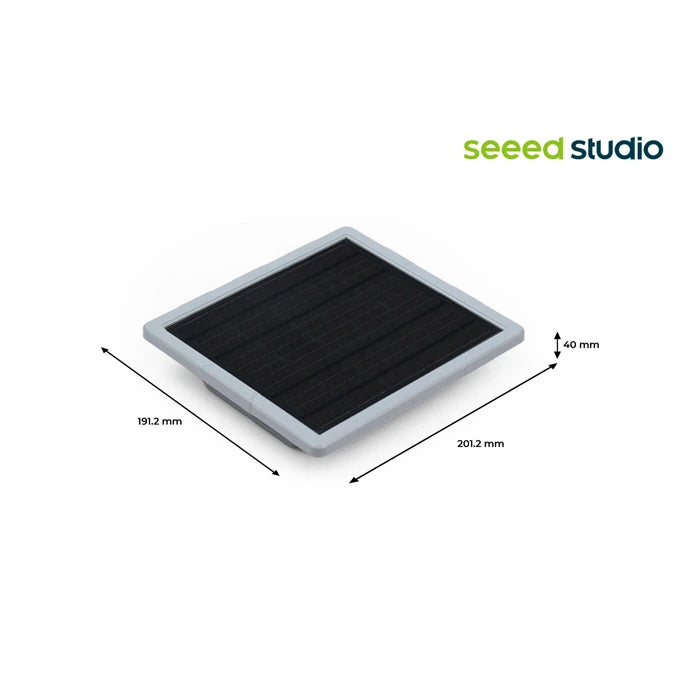

| Dimensions | 191.2 x 201.2 x 42.1 mm |

Applications

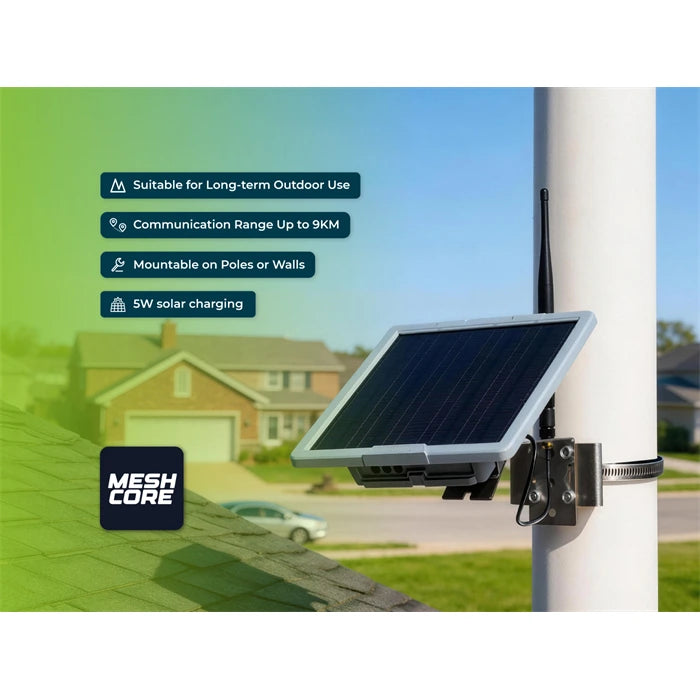

- Outdoor MeshCore deployments for fixed long-term installations.
- Relay nodes for mesh network expansion across farms, campuses, rooftops, or community grids.
- Off-grid communication infrastructure with solar-assisted power.
- Outdoor adventure, remote field messaging, and emergency backbone nodes.
- Permanent repeater layer for MeshCore networks where low maintenance matters.
In The Box
- SenseCAP Solar Node P1-Pro with GPS and battery
- Mounting brackets set
- 2dBi 868-915MHz rubber rod antenna
- RF cable, RP-SMA male to RF-SMA female, 300mm
- Black USB Type-C cable
- User manual
Other Content
Why this version is for MeshCore
This SKU is the MeshCore-oriented Solar Node P1-Pro, meant for users who want a ready outdoor repeater or backbone node without needing to redesign a solar enclosure, battery system, or mounting structure. It is especially useful in fixed-area coverage projects where nodes stay deployed for long periods.
Deployment direction
For MeshCore, this product makes the most sense as a roof-mounted repeater, farm relay, campus relay, or outdoor fixed backbone node. It is not just a generic LoRa dev board in a box, but a complete solar-powered deployment device intended for real outdoor infrastructure.
If you prefer Meshtastic
If your project is more Meshtastic-centered, use the Meshtastic version of this same product instead. That version is the better purchase path when your deployment, firmware workflow, and ecosystem are centered around Meshtastic rather than MeshCore.

MeshCore Version Videos
These independent videos demonstrate the Seeed Studio SenseCAP Solar Node P1-Pro for MeshCore in practical outdoor mesh-network scenarios. They help buyers review the hardware, solar-powered deployment, MeshCore workflow, and real-world operating experience before purchase.
OZE4HOME: SenseCAP Solar Node P1-Pro MeshCore Demonstration 1
OZE4HOME's video 1 provides an independent look at the MeshCore version, its setup, and practical field use.
OZE4HOME: SenseCAP Solar Node P1-Pro MeshCore Demonstration 2
OZE4HOME's video 2 provides an independent look at the MeshCore version, its setup, and practical field use.
OZE4HOME: SenseCAP Solar Node P1-Pro MeshCore Demonstration 3
OZE4HOME's video 3 provides an independent look at the MeshCore version, its setup, and practical field use.
OZE4HOME: SenseCAP Solar Node P1-Pro MeshCore Demonstration 4
OZE4HOME's video 4 provides an independent look at the MeshCore version, its setup, and practical field use.
LucaFox: SenseCAP Solar Node P1-Pro MeshCore Hands-on Video
LucaFox's video 5 provides an independent look at the MeshCore version, its setup, and practical field use.
Resources
- Seeed MeshCore getting started guide
- MeshCore official site
- MeshCore Web Flasher
- Seeed MeshCore node map guide
- Meshtastic-compatible version of this product
FAQ
Is this the MeshCore version or the Meshtastic version?
This SKU is the MeshCore version of the SenseCAP Solar Node P1-Pro.
Should I buy this if I mainly want Meshtastic?
No. If your deployment is primarily Meshtastic-focused, go to the Meshtastic-compatible version of this product instead.
What is it best used for in a MeshCore network?
It is best used as a fixed outdoor repeater, rooftop relay, farm relay, campus relay, or permanent low-maintenance backbone node.
Does the P1-Pro version include GPS and battery?
Yes. The P1-Pro version includes GPS and battery, which is one of the main differences from the simpler P1 variant.
