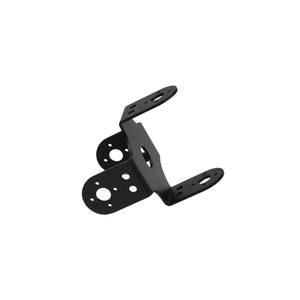

Double-shaft Servo Frame/Bracket: Compatible with Hiwonder Double-shaft Servo | Official image 3
Double-shaft Servo Frame/Bracket: Compatible with Hiwonder Double-shaft Servo | Official image 1
Double-shaft Servo Frame/Bracket: Compatible with Hiwonder Double-shaft Servo | Official image 2
Double-shaft Servo Frame/Bracket: Compatible with Hiwonder Double-shaft Servo | Official image 3

Hiwonder Double-Shaft Servo Bracket & Frame Parts for Robot Joints

SKU: Hiwonder-21100212
Type: long U shape frame
Sale price 1,10 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Double-shaft Servo Frame/Bracket: Compatible with Hiwonder Double-shaft Servo | Official image 1

Hiwonder Double-Shaft Servo Bracket & Frame Parts for Robot Joints

Double-shaft servo frame components for modular robot joints

Hiwonder Double-Shaft Servo Frame/Bracket components are lightweight structural parts for building and extending robot joints, linkages, arms and other servo-driven mechanisms. They are intended for Hiwonder double-shaft servo series. Choose the exact Type needed for your mechanical design; each option is a separate component, not a complete bracket assortment.

Hiwonder double-shaft servo bracket Type options

Choose the correct Type

Type Use in a robot-joint build
long U shape frame Longer U-profile frame for extended servo-joint spacing or linkage geometry.
short U shape frame Compact U-profile frame for tighter joint layouts.
big cross U shape frame Cross-shaped frame for multi-directional linkage and joint connections.
side cover frame Side-mount frame for a double-shaft servo connection point.
big U shape frame Wider U-profile frame for larger joint layouts.
small U shape frame Smaller U-profile frame for compact mechanical assemblies.
hand frame Hand-shaped structural frame for robot-hand or end-effector construction.
metal servo horn Metal output horn with M2 mounting holes.
small U shape connector Compact connector for joining compatible frame sections.

Hiwonder double-shaft servo frames, connector, hand frame and metal servo horn

Build modular robot structures

The range provides different frame geometries that can be combined around compatible double-shaft servos to create joints and linkages with different spacing and directions. The frames are useful for custom robot arms, legs, grippers, educational mechanisms and prototype assemblies. The actual motion range and load capacity depend on the selected servo, fastening method, geometry and assembled structure.

Example double-shaft servo bracket assembly for a robot joint

Compatibility and purchase notes

  • Designed for Hiwonder double-shaft servo series. Confirm the servo model, shaft arrangement, horn interface and mounting-hole pattern before ordering.
  • The Type selector contains nine independent component choices. Select the one part required for your project.
  • Fasteners, servos, controllers and other robot parts are not stated as included with every selected Type. Plan the full hardware bill of materials for your assembly.
  • Do not overtighten mounting screws. Check alignment and free movement before powering a servo-driven assembly.

FAQ

Is this a complete set of all nine bracket types?

No. This listing is sold by Type. Choose the individual frame, connector, hand frame or metal servo horn required for the specific build.

Which servos are these parts designed for?

They are intended for Hiwonder double-shaft servo series. Check the exact servo model and mechanical interface before ordering.

What is the difference between the long and short U shape frames?

They provide different U-profile lengths for different joint spacing and linkage layouts. Use the product images and your mechanical drawing to choose the required geometry.

Does the metal servo horn fit every servo?

No. It has M2 mounting holes, but horn spline and mounting compatibility must be confirmed against the selected servo before purchase.

Are screws and a servo included?

The selected Type identifies the bracket component. Do not assume a servo, screws or other hardware are included unless they are explicitly shown for the option purchased.

Can these parts be used for custom robot arms or legs?

Yes. The different frame shapes are intended for modular robot-joint and linkage construction, provided the selected servo and structure are mechanically compatible.
